10 Essential General Electric Dishwasher Parts
Is your General Electric dishwasher leaving dishes dirty, failing to drain, or making unusual noises? You’re not alone—many people struggle to identify which component is causing the problem. Understanding the essential General Electric dishwasher parts can make troubleshooting easier and help you choose the right replacement.
The 10 essential General Electric dishwasher parts include racks and tines, spray arms, the filter and sump, circulation pump and motor, heating element, drain pump, door gasket, door latch and switch, water inlet valve, and control panel or main board.
You’ll find that each part supports loading, washing, draining, heating, drying, or safe operation.
Knowing their warning signs helps you troubleshoot problems and choose compatible replacements. The following details will help you understand each component more clearly.
Key Takeaways
- Spray arms distribute pressurized water, so clean their nozzles and ensure they rotate freely for effective wash coverage.
- Filters and sump assemblies capture debris; regular cleaning prevents odors, clogs, standing water, and poor cleaning performance.
- The circulation pump and motor move water through the spray arms; failure may cause weak spray, noise, or extended cycles.
- Door gaskets, latches, and seals prevent leaks and keep the dishwasher securely closed during operation.
- Heating elements, inlet valves, drain pumps, racks, and control boards support heating, filling, draining, loading, and cycle control.

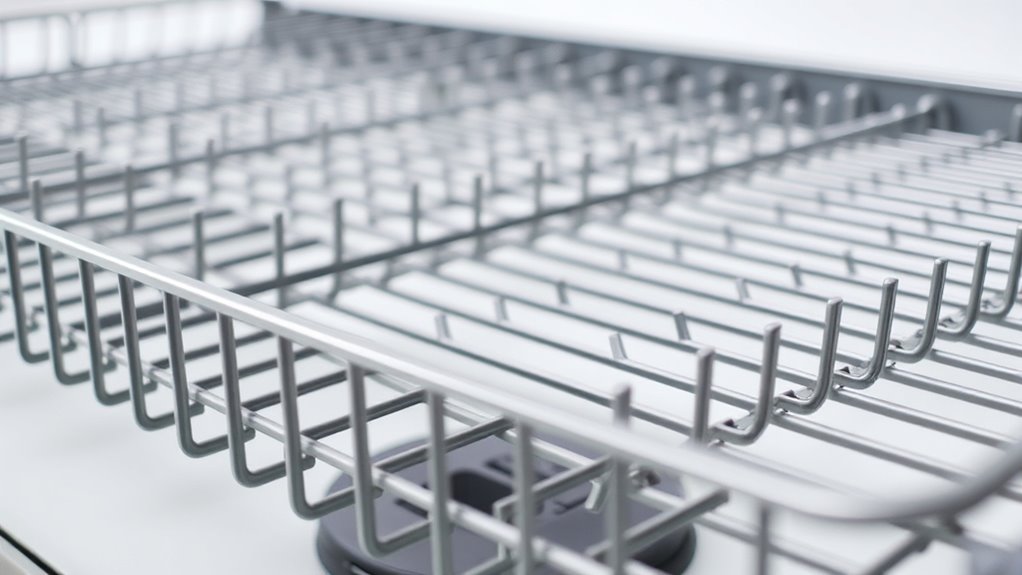

GE Dishwasher Racks and Tines
GE dishwasher racks and tines keep dishes organized and secure during each wash cycle. You’ll rely on the upper and lower racks to separate glassware, plates, cookware, and utensils, while adjustable sections help accommodate different loads.
Position each item between the tines, leaving enough space for thorough cleaning and safe unloading. Don’t overload the rack or force dishes into tight spaces, since pressure can bend coated wires and cause chips.
For lasting rack durability, inspect the coating regularly. Small cracks or exposed metal can develop rust, stain dishes, and weaken the rack.
Replace damaged racks or use an approved repair kit before corrosion spreads. If a tine bends, breaks, or no longer holds dishes upright, tine replacement can restore proper organization.
Choose a part that matches your GE dishwasher’s model number for a secure fit. You’ll protect delicate items and improve loading consistency by keeping racks clean, aligned, and free from damaged components.
Dishwasher Spray Arms and Wash Coverage
GE dishwashers use different spray arm types to direct water across the racks. Understanding how each arm sprays can help you load dishes for better wash coverage. If some items still come out dirty, check for clogs, damage, or anything preventing the spray arms from turning freely.
Spray Arm Types
Dishwasher spray arms direct pressurized water across the racks, and choosing the right type helps guarantee thorough wash coverage. Your GE dishwasher may use a lower spray arm, a middle rack arm, or an upper arm beneath the top rack.
Each location serves a specific rack, so you should match the replacement to your model’s design. Some units use a removable arm that twists or clips onto a hub, while others require a retaining nut or support assembly.
Spray arm materials commonly include durable plastic, stainless steel, or a combination of both. Plastic arms resist corrosion and keep weight low; metal options can provide added durability.
Before ordering spray arm replacement parts, check your dishwasher’s model number, arm shape, mounting method, and dimensions. Don’t substitute an incompatible arm, because it may restrict rack movement or fail to spin freely.
Water Jet Patterns
Once you’ve matched the spray arm to your GE dishwasher, consider how its water jets distribute coverage. Water flow exits through angled openings, creating rotating streams that reach dishes across each rack.
As the arm turns, alternating jet paths sweep the interior, helping detergent-rich water contact plates, bowls, glasses, and utensils. Lower spray arms typically direct stronger streams upward, while middle or upper arms target the rack beneath them.
Some designs use varied nozzle sizes to balance reach, pressure, and jet precision. You’ll get the best wash action when each opening points toward the intended area and the arm rotates freely.
Pay attention to the spray pattern when loading. Arrange surfaces so they face the active jets, and leave space between items for water to pass through effectively.
Coverage Troubleshooting
Uneven coverage often points to a clogged nozzle, restricted spray arm, or loading problem. Remove the lower and upper spray arms, then rinse each opening and clear debris with a soft brush.
Spin every arm by hand; it should rotate freely without scraping the racks or door. Check the filter, too, because trapped soil can reduce water pressure.
| Symptom | Likely cause | Action |
|---|---|---|
| Top rack stays dirty | Upper arm blockage | Clean nozzles |
| One area remains wet | Loading obstruction | Reposition dishes |
| Weak spraying | Clogged filter | Rinse filter |
Don’t stack dishes tightly or let handles block the arms. Replace cracked arms or worn seals to restore pressure, improve energy efficiency, and support noise reduction.
Run an empty test cycle afterward, checking that water reaches every section.
GE Dishwasher Filter and Sump Assembly
Your GE dishwasher’s filter traps food particles, so clean it regularly and replace it if it becomes damaged. Also, check the sump assembly for debris and clear any blockages to keep the dishwasher draining and washing properly. These simple maintenance steps help your dishwasher run efficiently.
Filter Cleaning and Replacement
Cleaning the GE dishwasher filter and sump assembly regularly helps prevent food buildup, odors, and poor wash performance. Before servicing it, turn off the dishwasher and remove the lower rack.
Lift out the filter according to your model’s instructions, then rinse it under warm water. Use a soft brush to loosen trapped particles, but don’t use abrasive cleaners that could damage the mesh.
Wipe the surrounding filter area with a damp cloth. If the filter remains stained, cracked, or clogged after cleaning, replace it with the correct GE part.
Check your owner’s manual for removal steps and replacement intervals. Eco-friendly detergents can support cleaner results while reducing residue.
Proper filter care also contributes to Dishwasher noise reduction by preventing debris from interfering with normal water circulation.
Sump Assembly Maintenance
To maintain the sump assembly, first disconnect power and remove the lower rack and filter. Perform a sump assembly inspection for food debris, broken glass, mineral buildup, or standing water.
Wipe accessible surfaces with a soft cloth and mild detergent. Don’t use abrasive cleaners that could damage plastic or seals.
Check the drain opening and spray-arm connection for blockages. Remove debris with tweezers or a soft brush.
Examine the sump seal for cracks, flattening, or leaks. If it’s damaged, complete a sump seal replacement with the correct GE dishwasher part, following your model’s service instructions.
Reinstall the filter securely, ensuring it sits flat and locks into place. Restore power, run a short cycle, and watch beneath the dishwasher for leaks.
Stop using the appliance if leaking continues.
Dishwasher Circulation Pump and Motor
When your GE dishwasher leaves dishes dirty or makes a low humming noise, the circulation pump and motor may be failing. This assembly draws water from the sump and pushes it through the spray arms, creating the pressure that removes food from your dishes.
If the motor struggles, you might notice weak spray, standing water, unusual sounds, or longer cycles.
Before ordering a replacement, turn off power and inspect the pump area for debris, leaks, or damaged wiring. You can also check the spray arms for clogs, since blockages may mimic pump problems.
Inspect the pump and spray arms for debris, leaks, wiring damage, or clogs before ordering a replacement.
If the motor only hums, avoid repeatedly running the dishwasher. Continued operation could worsen the damage.
Choose a GE-compatible pump and motor assembly for proper fit and reliable performance. A healthy unit supports energy efficiency by circulating water effectively instead of forcing extended cycles.
It also contributes to noise reduction when its bearings and impeller operate smoothly. Have a qualified technician handle electrical testing or installation if needed.
GE Dishwasher Heating Element
The GE dishwasher heating element raises the water temperature and helps dry dishes after the final rinse. During washing, it supports effective detergent action and helps remove grease from plates, glasses, and cookware. During drying, it warms the tub so moisture evaporates more quickly.
If your dishes remain cold or wet, inspect the element for cracks, blistering, or visible damage. You can also check for a tripped breaker, but test electrical components only if you understand appliance repair.
Before touching the element, disconnect power at the breaker or unplug the dishwasher, and let it cool completely. These safety precautions help protect you from burns and electric shock.
Keep plastic items away from the element because direct contact can cause melting. A functioning element also supports energy efficiency by reducing drying time and maintaining the intended wash temperature.
If testing shows an open circuit or the component appears damaged, replace it with the correct GE part or hire a qualified technician.
Dishwasher Water Inlet Valve
A dishwasher water inlet valve controls how much fresh water enters the tub during a cycle. When your GE dishwasher starts filling, the control board sends power to the inlet valve. The valve opens, allowing water to flow through the supply line and into the appliance. Once the tub reaches the proper level, the valve closes to prevent overfilling.
If your dishwasher fills slowly, doesn’t fill, or leaks near the water connection, inspect the inlet valve and its screen for mineral buildup or debris. Low water pressure can also restrict filling, while excessive pressure may strain the valve and connections.
Turn off the water and electricity before checking or replacing this part. You’ll need to disconnect the supply line, remove the old valve, and install the correct GE replacement securely.
Afterward, run a cycle and watch for leaks during filling. Replacing a faulty inlet valve can restore proper water levels and help your dishwasher clean dishes consistently.
Dishwasher Drain Pump and Drainage Problems
Your GE dishwasher’s drain pump clears dirty water from the tub and pushes it through the drain hose. When the pump becomes clogged or stops working, you might notice standing water, slow drainage, or unusual noises. In many cases, food debris, a blocked hose, or a faulty pump is the cause.
Drain Pump Function
When dirty water remains in the tub after a cycle, the drain pump may not be moving it through the drain hose. This motor-driven part pushes wastewater from the sump toward the household drain connection.
You’ll find it beneath the filter area, where it uses an impeller to create flow. Understanding its operation helps you inspect the right component without replacing unrelated parts.
| Part action | What you can check |
|---|---|
| Impeller spins | Remove debris safely |
| Motor runs | Listen for consistent operation |
For drain pump maintenance, disconnect power, clean the filter, and inspect the pump cover for trapped objects.
Pump noise troubleshooting starts with identifying whether the sound is humming, rattling, or grinding. Never reach into the pump while the dishwasher has power.
If the impeller won’t turn freely or the motor stays silent, test the pump with a qualified technician’s guidance.
Common Drainage Issues
Drainage problems often point to a clogged filter, blocked drain hose, or failing drain pump. If water remains inside your General Electric dishwasher, turn off power and inspect these areas before ordering replacement parts.
You’ll usually find one of three causes:
- Remove and rinse the filter, clearing food particles that restrict flow.
- Check the drain hose for kinks, buildup, or a loose connection beneath the sink.
- Test the drain pump for humming, leaks, or silence; replace it if the impeller won’t move.
You should also inspect Drain pipe fittings for cracks or improper connections that let water leak instead of drain.
Hard water can create mineral deposits, so Water softening may help prevent recurring blockages.
Don’t run another cycle until you’ve restored proper drainage. Standing water encourages odors and can damage internal components.
Door Seal and Gasket for Leak Prevention
A worn or misaligned door seal can let water escape during a wash cycle, but replacing the damaged gasket helps keep your General Electric dishwasher leak-free. Inspect the door seal regularly for cracks, flattening, brittleness, or food buildup.
Run your fingers around its channel and wipe away debris with warm, soapy water. If the seal feels loose or no longer sits evenly, you’ll need gasket replacement.
Before installation, switch off the dishwasher’s power and open the door fully. Remove the old gasket gently, then clean the groove so the new seal can seat properly.
Soak the replacement gasket in warm water briefly to soften it, if the manufacturer recommends this step. Press it into the channel, starting at the center of the top edge and working around both sides.
Keep the seal flat without stretching it. Afterward, close the door and check for uniform contact.
Run a short cycle and inspect beneath the door for moisture. Replace the seal if leaks return.
GE Dishwasher Door Latch and Switch
If the door seal is in good condition but your GE dishwasher still won’t start or stay closed, inspect the door latch and switch. These parts confirm that the door has closed securely before the wash cycle begins.
A damaged Door latch may feel loose, fail to catch, or prevent the door from staying shut. A faulty Switch assembly can also stop operation, even when the latch appears normal.
Before testing, disconnect power to protect yourself from electrical hazards. Then:
- Check the latch for cracks, bent components, or food buildup that could block engagement.
- Close the door slowly and listen for a firm click; unusual looseness suggests wear.
- Use a multimeter to test switch continuity only if you’re comfortable working with appliance wiring.
Replace defective parts with GE-compatible components, and follow the model’s repair instructions. Don’t force the door closed, because pressure can damage the latch or hinges.
After installation, confirm the door closes evenly and the dishwasher starts normally.
Dishwasher Control Panel and Main Board
When your GE dishwasher has power but won’t respond to cycle selections, the control panel or main board may be faulty. The control panel contains buttons or a touch interface that lets you choose wash cycles, options, and delay settings.
GE dishwasher controls that fail to respond may indicate a faulty control panel or main board requiring inspection.
If it’s cracked, unresponsive, or displaying error codes, inspect its connections before replacing it.
The main board receives your commands and directs the pump, heater, inlet valve, and dispenser. A failed board can cause incomplete cycles, random stopping, or a dishwasher that won’t start.
Turn off the breaker before testing wiring or removing either component. You should also check for moisture, burned connections, and loose plugs.
Replacing the correct part requires your GE model number, usually found inside the door. Choose a compatible control panel or board rather than guessing.
A functioning board supports energy efficiency by controlling water temperature and cycle duration. It can also influence noise levels by coordinating motor and pump operation.
When diagnosis seems uncertain, hire a qualified technician.
Frequently Asked Questions
How Do I Find the Correct Replacement Part for My GE Dishwasher Model?
Find your GE dishwasher’s model number on the inside door, tub wall, or owner’s manual. Enter that exact number on GE Appliances’ parts website, then compare the diagrams, descriptions, and compatibility notes.
You can also contact GE support or an authorized parts dealer with the model and serial numbers. Before ordering, confirm dimensions and connector types.
Use Dishwasher cleaning and Troubleshooting leaks guides to identify the failing component before replacing it.
Where Can I Buy GEnuine GE Dishwasher Parts?
You can buy genuine GE dishwasher parts through GE Appliances’ official Parts website, authorized dealers, or reputable appliance-repair suppliers.
Imagine your dishwasher’s rack wheel breaking before dinner. Search your model number on GE’s parts portal, confirm the diagram and part number, then order directly.
Genuine parts fit correctly and preserve performance. Authorized dealers may offer local pickup, expert guidance, and warranty support.
Avoid unknown marketplaces unless the seller verifies authenticity and compatibility.
Are GE Dishwasher Parts Covered Under Warranty?
Yes, GE dishwasher parts may qualify for warranty coverage, but coverage depends on your model, purchase date, and the specific failed component. Check your owner’s manual or GE Appliances’ warranty terms to confirm eligibility.
If covered, contact GE or an authorized service provider before buying or installing anything. The repair process typically requires proof of purchase, model details, and an approved technician; unauthorized repairs may void coverage or limit reimbursement.
Can I Install GE Dishwasher Replacement Parts Myself?
Yes, you can install GE dishwasher replacement parts yourself because apparently, your kitchen now doubles as a repair shop. For simple fixes, DIY repair may involve replacing racks, spray arms, filters, door seals, or hoses with basic tools.
Follow the manual carefully, disconnect power and water, and observe essential safety precautions. Don’t tackle electrical components, leaks, or complex control-board repairs unless you’re qualified. Call a technician to avoid damage, shocks, or flooding.
How Do I Identify My GE Dishwasher’s Model and Serial Numbers?
Open your GE dishwasher door and check the left or right tub wall, door edge, or frame for the model and serial label. You may also find this information on the owner’s manual, purchase receipt, or installation paperwork.
Record every letter and number exactly, including dashes. Use the model number when ordering parts.
Accurate identification supports dishwasher cleaning, maintenance tips, troubleshooting, and compatible replacement choices without guesswork or delays.
Conclusion
Knowing these 10 essential General Electric dishwasher parts can make maintenance much less mysterious. From racks and spray arms to filters, pumps, heating elements, seals, latches, and control boards, each component contributes to clean, quiet cycles.
When you spot strange sounds, standing water, leaks, or poor performance, you’ll know where to start. Check simple causes first, replace worn pieces promptly, and call a professional when problems persist.
With regular care, your dishwasher can deliver dependable, sparkling results for years.
